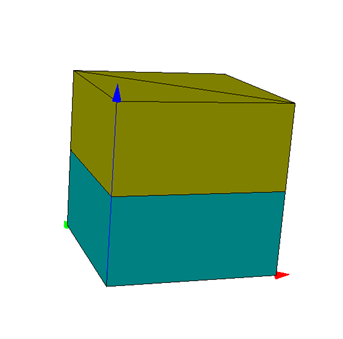

The geometrical setup of this example is a simple planar infinite substrate layer, covered by air.
The air/substrate interface is illuminated under a certain angle and the reflected light is computed. For computation of ellipsometric quantities like Mueller and Jones Matrix first the Fourier Transform of the reflected near field is computed. This is needed as an input for the Scattering Matrix post process in the project file, which determines all relevant ellipsometric parameters:
PostProcess {
FourierTransform {
FieldBagPath = "project_results/fieldbag.jcm"
OutputFileName = "project_results/fourier_modes.jcm"
NormalDirection = Z
}
}
PostProcess{
ScatteringMatrix{
InputFileName="project_results/fourier_modes.jcm"
OutputFileName="project_results/sm.jcm"
}
}
For computation of the scattering matrix, two incoming fields with non-parallel polarization states have to be defined in the source file for each direction of interest:
...
PlaneWave {
...
ThetaPhi = [20 15]
SP = [1 0]
}
...
PlaneWave {
...
ThetaPhi = [20 15]
SP = [0 1]
}
In this project a number of parameter derivatives up to second order are computed. The derivative parameters are the global position of the interface, the permittivity of the bulk material, the wavelength and incidence angle. In an ellipsometric setup, geometrical and material derivatives can be used in the inverse fitting process of the model data to the measurement. The derivatives of the incident field can be used to speed up computation of a wavelength and angle scan of the ellipsometer.
The wavelength derivative is defined in the sources.jcm file
DerivativeParameter {
Name = "Lambda0"
TreeEntry {
Path = SourceBag/Source/ElectricFieldStrength/PlaneWave/Lambda0
Scaling = 1e-9
}
}
The Scaling is introduced to compute the derivative with respect to a change in wavelength in nanometers. Since a change in wavelength usually leads to a change of the refractive index, the same derivative parameter is also used in the materials.jcm file:
DerivativeParameter {
Name = "Lambda0"
TreeEntry {
Path = Substrate/RelPermittivity
Scaling = 1e-3
}
}
Here, it is assumed, that the permittivity of the bulk material changes by 0.001 when the wavelength changes by 1nm. This Scaling can also be complex.
When computing parameter derivatives with JCMsuite, only a single matrix decomposition is done by the solver. Since this often takes most of computation time, the parameter derivative capability of JCMsuite can save a lot of computational effort, e.g. compared to a finite difference approximation. Also, the accuracy of numerical parameter derivatives is similar to the accuracy of the primary solution. With 4 parameters, 4 first and 10 mixed second derivatives are computed.
In the data_analysis/run_derivatives script the primary solution and the parameter derivatives computed with JCMsuite are compared to the corresponding quantities determined analytically from Fresnel’s equations. The output shows accuracy of the SS and PP components of the Jones matrix and its derivatives. The output file sm.jcm of the scattering matrix post process, includes further relevant quantities, like Mueller the matrix etc.
|
